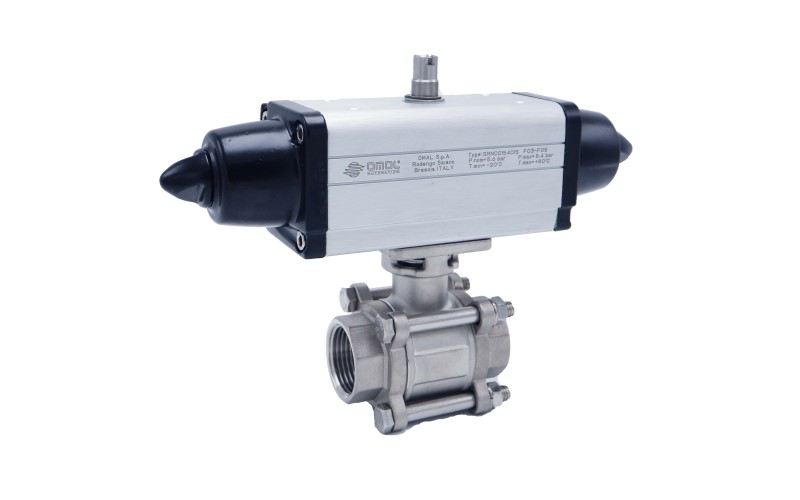

Art.DG400 三片式二通氣動閥

Art.DG400三片式二通氣動閥，採用高品質316不鏽鋼三片式閥體設計，具備卓越的耐壓與耐腐蝕性能。搭配多樣化坐墊材質選擇，適應不同工況需求，支援牙口、套焊及對焊等多種接續方式。適用於高壓、高溫流體控制，廣泛應用於化工、製程、油氣與真空系統。

產品特色

• 三片式316不鏽鋼閥體，維修保養方便
• 多種坐墊材質可選：PTFE、TFM1600、POM、PEEK
• 牙口、套焊、對焊接續，安裝彈性高
• 耐高壓設計，工作壓力達1000WOG
• 適用於各式流體，如水、油、氣體與真空系統

技術規格

Art.DG400 Three-Piece Two-Way Pneumatic Valve

The Art.DG400 three-piece two-way pneumatic valve features a robust 316 stainless steel body for outstanding pressure resistance and corrosion protection. Offering various seat material options such as PTFE, TFM1600, POM, and PEEK, it adapts to a wide range of applications. With threaded, socket weld, and butt weld connections available, it is ideal for high-pressure, high-temperature fluid control in chemical, process, oil, and vacuum industries.

Features

• Three-piece 316 stainless steel construction for easy maintenance
• Various seat materials available: PTFE, TFM1600, POM, PEEK
• Multiple connection options: threaded, socket weld, butt weld
• Rated for 1000WOG working pressure
• Suitable for water, oil, gas, and vacuum fluid control

Technical Specifications
