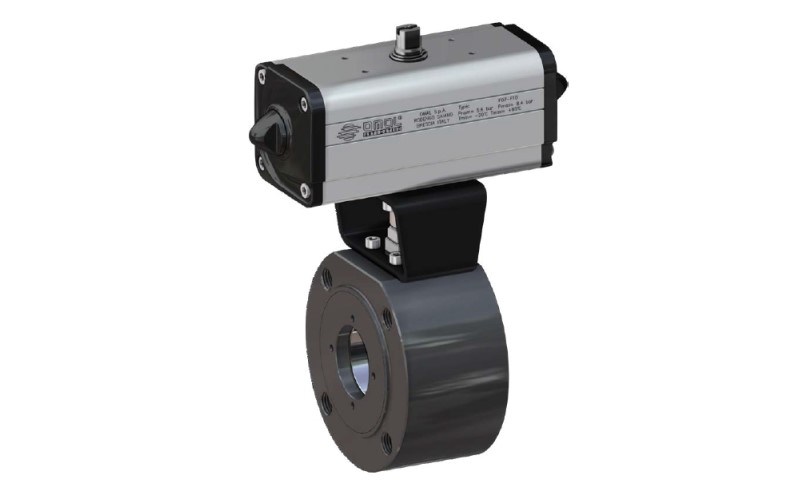

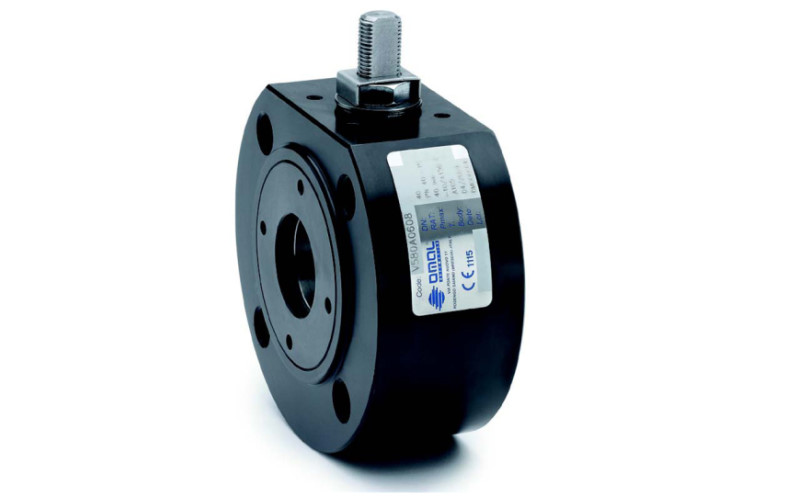

Art.DG405 薄餅式/一片式法蘭氣動閥

Art.DG405薄餅式/一片式法蘭氣動閥，結構緊湊、重量輕盈，適用於空間受限或需要快速啟閉的系統。閥體材質可選不銹鋼或碳鋼，搭配陽極處理鋁合金氣缸，並支援多種國際標準法蘭規格。可依不同流體需求選用適配閥體與座墊，確保流體控制的最佳效能與耐用性。

產品特色

• 薄餅式/一片式設計，結構緊湊節省空間
• 多種法蘭標準（PN16～PN100、150LB、300LB）可選
• 閥體材質可選不銹鋼或碳鋼
• 陽極處理鋁合金氣缸，輕量且耐蝕
• 工作溫度最高可達180℃
• 可依流體特性選配閥體與座墊材質

技術規格

型號 (Model)	DG405
尺寸 (Size)	1/2" ～ 8"
閥體材質 (Body Material)	不銹鋼 / 碳鋼
法蘭規格 (Flange Standard)	PN16 / PN40 / PN64 / PN100 / 150LB / 300LB
氣缸材質 (Cylinder Material)	陽極處理鋁合金
工作溫度 (Working Temperature)	最高可達180℃
適用流體 (Applicable Fluids)	依流體需求搭配不同閥體與座墊

Art.DG405 Wafer Type / One-Piece Flanged Pneumatic Valve

The Art.DG405 wafer type/one-piece flanged pneumatic valve features a compact and lightweight design, ideal for space-constrained or rapid on-off systems. Available in stainless steel or carbon steel bodies, with anodized aluminum actuators, it supports multiple international flange standards. Suitable valve body and seat materials can be selected based on specific fluid requirements for optimal performance.

Features

• Compact wafer/one-piece structure for space-saving installations
• Available with PN16–PN100, 150LB, 300LB flange standards
• Stainless steel or carbon steel valve body options
• Lightweight, corrosion-resistant anodized aluminum actuator
• Working temperature up to 180°C
• Customizable seat and body materials based on fluid properties

Technical Specifications

Model	DG405
Size	1/2" ～ 8"
Body Material	Stainless Steel / Carbon Steel
Flange Standard	PN16 / PN40 / PN64 / PN100 / 150LB / 300LB
Cylinder Material	Anodized Aluminum Alloy
Working Temperature	Up to 180°C
Applicable Fluids	Matched valve and seat materials per fluid requirement
