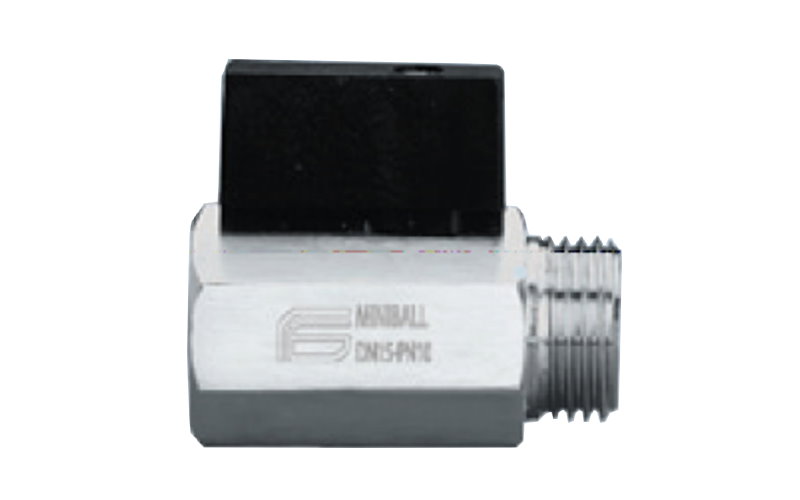

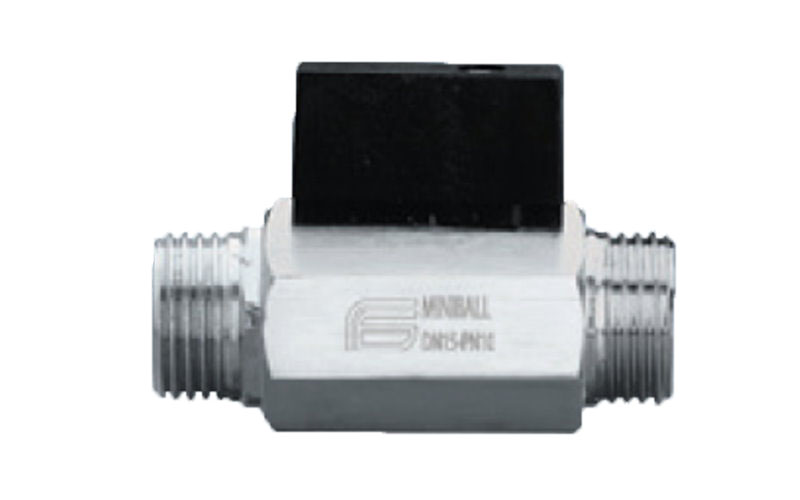

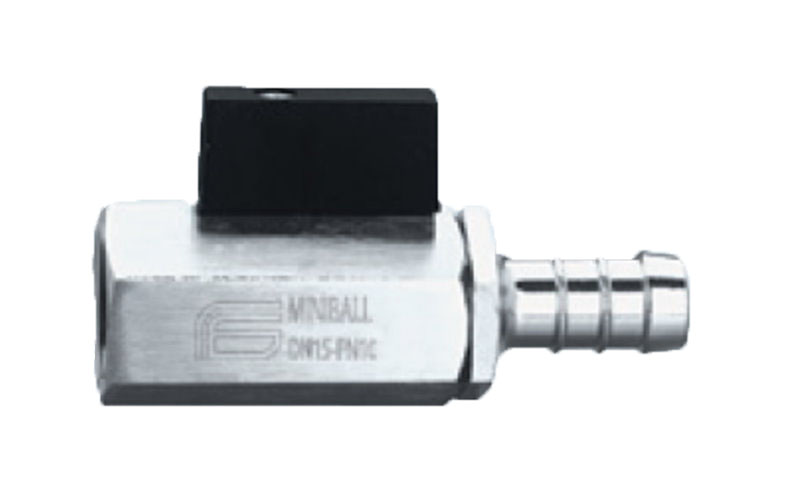

Art.1501 迷你球塞閥

Art.1501 為 MINBALL 系列迷你型球塞閥，體積小巧、安裝便利，特別適合應用於空間狹窄的場所。閥體為鍍鎳黃銅，搭配原生特弗龍座墊，具備良好的密封性能與壓力耐受性，適用於水管、空壓機、衛生設備與桶槽排水等多種民生及工業場合。

產品特色

• MINBALL 系列半流量迷你球塞閥
• 適用於空間狹小的配管系統
• 鍍鎳黃銅閥體，堅固耐用
• 原生特弗龍密封，氣密性佳
• 玻纖或鍍鉻小型操作把手
• 出廠前經多道測試程序把關

技術規格

尺寸	1/8” ～ 1/2”
本體材質	鍍鎳黃銅
座墊材質	原生特弗龍（PTFE）
溫度範圍	-10℃ ～ +90℃
壓力範圍	最高 10 bar

Art.1501 Mini Ball Valve

The Art.1501 MINBALL series mini ball valve is designed for compact installations with limited space. Constructed from nickel-plated brass and sealed with virgin PTFE, it ensures reliability and leak resistance under pressure. Ideal for household piping, sanitary systems, air compressors, and fluid outlets from tanks, the valve offers simple operation with a small fiberglass or chrome handle.

Features

• MINBALL series compact half-flow design
• Perfect for tight installation spaces
• Nickel-plated brass body for durability
• Virgin PTFE seat ensures reliable sealing
• Available with fiberglass or chrome handle
• Each valve is tested during production

Technical Specifications

Size	1/8” to 1/2”
Body Material	Nickel-plated Brass
Seat Material	Virgin PTFE
Temperature Range	-10℃ to +90℃
Pressure Rating	Up to 10 bar
