Art.2621（拋光）/2601 不銹鋼球塞閥

本系列球塞閥提供標準款與拋光版本，均採用 316 不銹鋼製造，內部三層防漏墊片設計，具備優異氣密性與耐壓性。適用於液控、氣控、蒸氣、真空等多種工業領域，特別推薦於食品與化工產線使用。拋光型可強化潔淨等級，應用更廣泛。

產品特色

• 提供標準與內部拋光兩種型式
• 三層防漏墊片，耐壓密封性強
• 全流量設計，流體阻力極低
• 鋼製把手或蝶形蠂柄可選
• 可應用於真空、蒸氣與食品級用途
• 氧氣用途需進行除脂處理

技術規格

尺寸	1/4” ～ 2”
材質	不銹鋼 316（標準 / 拋光）
溫度範圍	-20℃ ～ +150℃
壓力範圍	100 bar ～ 40 bar

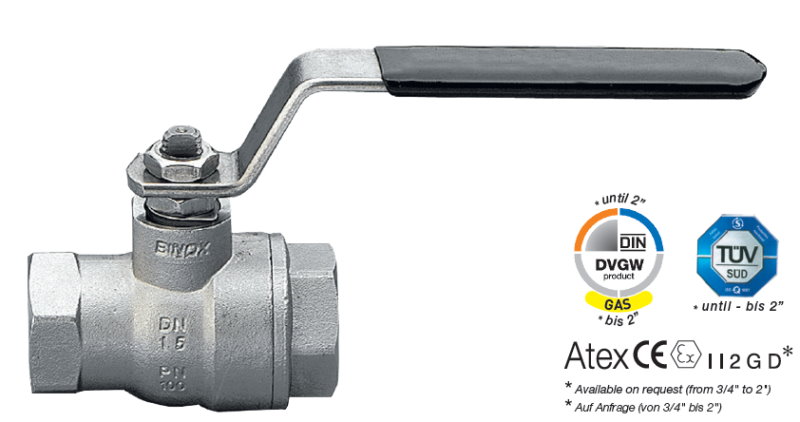

Art.2621 (Polished) / 2601 Stainless Steel Ball Valve

The Art.2621 (Polished) / 2601 stainless steel ball valve series offers a robust full bore design with a triple-seal system for excellent leak resistance. Available in standard and polished internal finish for enhanced hygiene, it is ideal for chemical processing, food-grade systems, steam, vacuum, and general fluid control. All components for oxygen service must be degreased.

Features

• Available in standard or polished internal finish
• Triple PTFE seal ensures excellent sealing performance
• Full bore design for unrestricted flow
• Optional steel lever or butterfly handle
• Compatible with vacuum, steam, and food systems
• Degreasing required for oxygen applications

Technical Specifications

Size	1/4” to 2”
Material	Stainless Steel 316 (Standard / Polished)
Temperature Range	-20℃ to +150℃
Pressure Range	100 bar – 40 bar
