手動閥門限位開關安裝套件（閥位監控）

手動閥門限位開關安裝套件可應用於手動球閥、手動蝶閥及各類 ISO 高平台手動閥門。透過安裝支架、感應器與目標感應塊，可讓原本無法監控開關位置的手動閥門，加裝限位開關或位置感應器，實現閥門開啟與關閉狀態監控，並可將訊號傳送至 PLC、DCS 或自動化控制系統。

產品特色

• 讓手動閥門也能加裝限位開關
• 可偵測閥門開啟與關閉位置
• 適用手動球閥、手動蝶閥及手動閥門

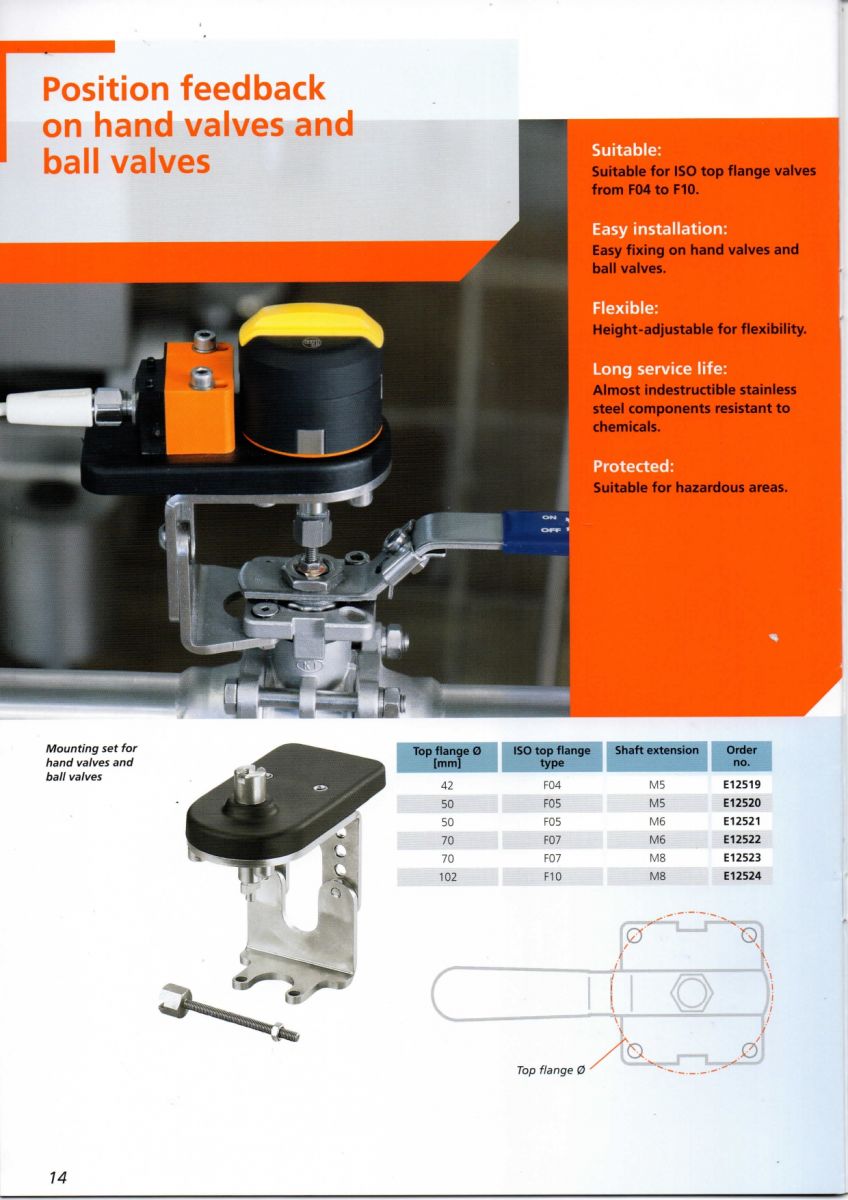

• 支架適用 ISO 高平台，支援 F04 至 F10 規格
• 可搭配感應器、開關盒或位置監控裝置使用
• 適合 PLC、DCS 及遠端監控系統

套件組成

技術規格

適用場合

• 手動球閥開關狀態監控
• 手動蝶閥位置偵測
• 現場閥門狀態辨識
• 遠端監控系統訊號回傳
• PLC / DCS 控制系統
• 食品、化工、製程設備與一般工業管線

Manual Valve Limit Switch Mounting Kit

The Manual Valve Limit Switch Mounting Kit is designed for manual ball valves, butterfly valves, and ISO top flange hand valves. With the mounting bracket, sensor, and target puck, manually operated valves can be upgraded with limit switches or position sensors to monitor open and closed positions. The signal can be transmitted to PLC, DCS, or automation monitoring systems.

Features

• Allows manual valves to be equipped with limit switches
• Detects valve open and closed positions
• Suitable for manual ball valves, butterfly valves, and hand valves
• Mounting bracket suitable for ISO top flange F04 to F10
• Compatible with sensors, switch boxes, and position monitoring devices
• Suitable for PLC, DCS, and remote monitoring systems

Kit Components

Technical Specifications
